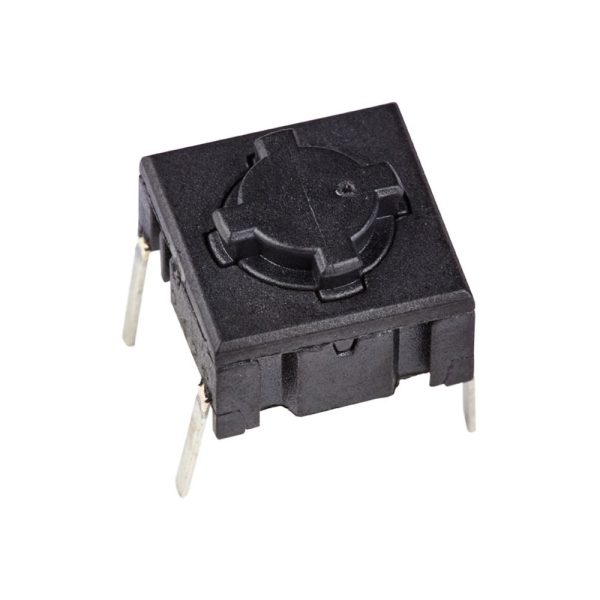

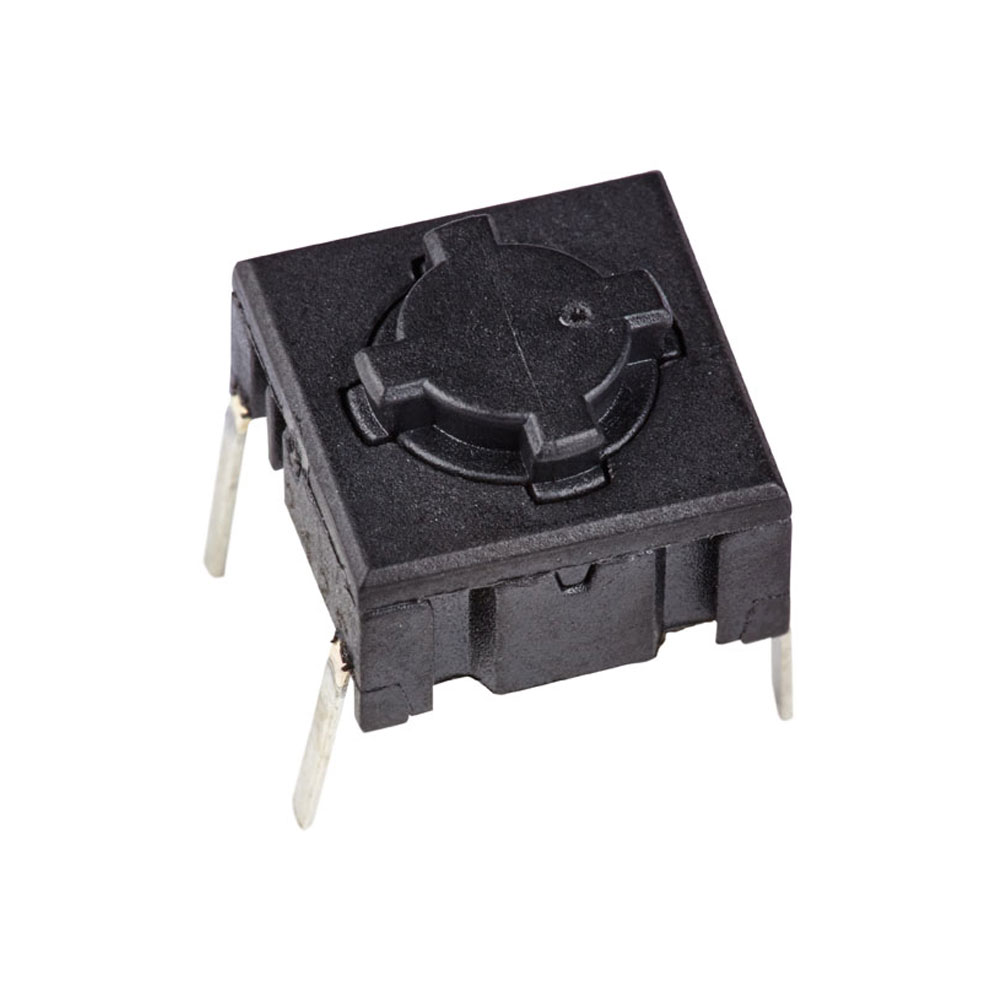

Multimec™ 5E
Product Details
Multimec™ 5E switch has a small diameter snap-on cap retention system and an actuator extended out of the switch body. 5E is only available in high temperature material in order to stand today´s advanced soldering processes.
Caps available for 5E are: 1S
Product Information
£0.00
(£0.00 ex. VAT)
| Function: | Actuation force: 2.0N- 3.5N- 6.5NNO or NC/NO |
| Features 1: | h=6.4 mm 10 x 10 mm |
| Features 2: | Through-hole (TH) or surface mount (SMD) or right angel through-hole |
| Features 3: | 50mA/24VDC |
| Features 4: | Single pole/momentary |
| Features 5: | Momentary NO IP67 sealing Temperature range: -40/+160°C IP 67 sealing Actuation force: 3.5N |
