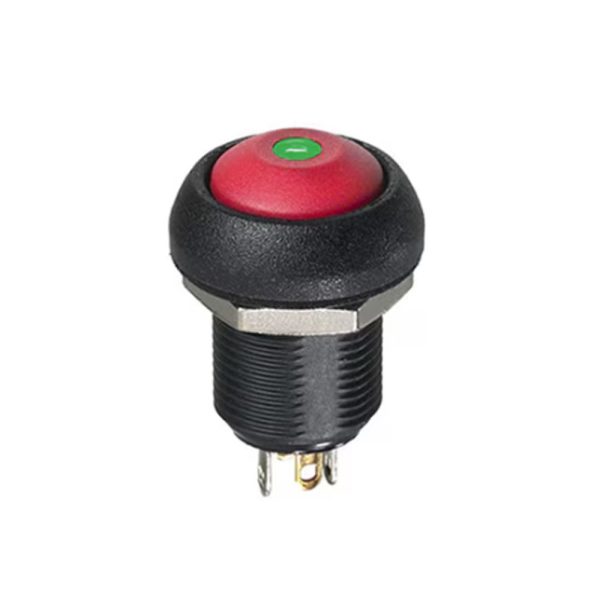

IL
Product Details
The IL series is a range of momentary sealed pushbutton switches for thick panels. Bushing dia. 12 mm- illuminated or not- gold plated silver contacts. Sealed to IP67 (standard models only).
Product Information
£0.00
(£0.00 ex. VAT)
| Function: | (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 |
| Tf Range: | 1.50 mm (.059) min. 10 mm (.393) max. |
| Features 1: | Total travel: 1.7 mm (.067) +/- 0.3 mm |
| Features 2: | Typical operating force: 4 N +/- 2 N |
| Features 3: | Low level or mechanical life: 1-000-000 cycles |
| Features 4: | Soldering: 300 ¡C max. for 3 seconds |
| Features 5: | For panels up to 10 mm thick |
| Features 6: | Tactile feedback |
